Modbus Master-Slave Communication System

Introduction

The Modbus Master-Slave Communication System is a standard communication protocol commonly used in industrial automation. It allows multiple devices to communicate over the same network using a master-slave architecture, enabling effective control and monitoring of equipment.

Modbus Protocol Overview

The Modbus protocol is widely used due to its simplicity and reliability. It includes two common variations: Modbus RTU for serial communication and Modbus TCP/IP for Ethernet-based networks.

Components Required

• Master Device: Typically a PC, PLC, or microcontroller like Arduino, ESP32, etc.
• Slave Devices: Equipment like sensors, PLCs, or controllers that respond to master requests.
• RS-485 Converter: For serial communication over long distances (Modbus RTU).
• Software Tools: SCADA or HMI software for visualizing data, Modbus libraries for programming, etc.

Function Codes Used in Modbus

Modbus uses specific function codes to communicate between the master and slaves. Some of the common function codes include:

• 01: Read Coils
• 02: Read Discrete Inputs
• 03: Read Holding Registers
• 04: Read Input Registers
• 05: Write Single Coil
• 06: Write Single Register
• 15: Write Multiple Coils
• 16: Write Multiple Registers

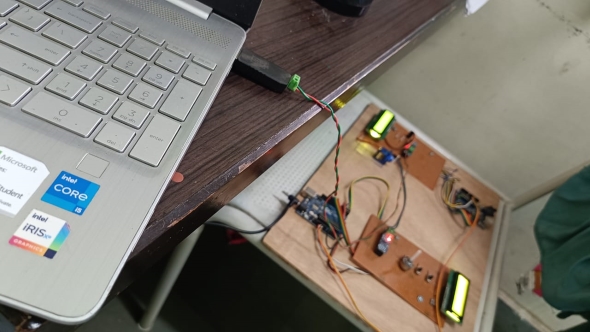

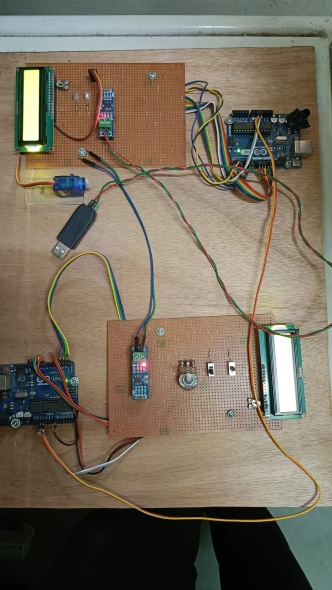

Example Project: Modbus Master-Slave with Arduino

In this example, we will use two Arduino boards to simulate a basic Modbus Master-Slave setup over RS-485.

Components Needed:

• 2 x Arduino Uno (or compatible boards)
• 2 x MAX485 Module (RS-485 transceiver)
• Jumper wires, resistors
• Power supply

Sample Code for Modbus Master

        // Sample code for Arduino acting as Modbus Master
        #include

        ModbusMaster master;
        #define MAX485_DE 2
        #define MAX485_RE 2

        void setup() {
            // Setup code here
        }
        void loop() {
            // Master code loop here
        }


Sample Code for Modbus Slave

        // Sample code for Arduino acting as Modbus Slave
        #include

        void setup() {
            // Setup code here
        }
        void loop() {
            // Slave code loop here
        }


Applications of Modbus Master-Slave System

The Modbus system is widely used in various industries, including:

• Factory Automation
• Building Management Systems
• Remote Monitoring and Control
• Smart Grids

Conclusion

The Modbus Master-Slave Communication System provides an efficient way to monitor and control industrial equipment. It is a versatile and reliable protocol, making it an ideal choice for industrial and embedded applications.
