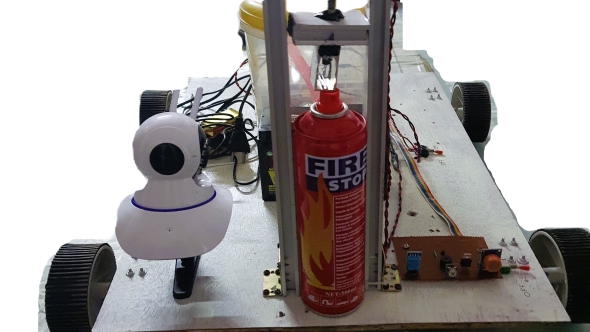

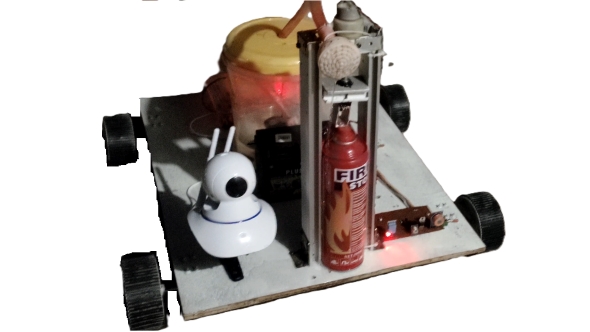

IoT-Based Fire Extinguisher Robot

Project Overview

This IoT-based Fire Extinguisher Robot is designed to detect fire and extinguish it automatically. Using sensors to detect flame and smoke, the robot can locate the fire source and extinguish it by spraying water or another extinguishing agent. The system is equipped with an IoT module for real-time monitoring and control, enabling remote operation in case of emergency.

Components Required

• Arduino Uno: The main controller of the robot.
• Flame Sensor: Detects the presence of fire.
• Smoke Sensor (MQ-2): Detects smoke near the fire source.
• Water Pump Module: Used to spray water to extinguish the fire.
• Relay Module: Controls the water pump.
• Motor Driver Module (L298N): Controls the robot’s wheels for movement.
• Wi-Fi Module (ESP8266): For IoT communication and remote monitoring.
• DC Motors and Wheels: For robot movement.
• Power Supply: For Arduino and motor power requirements.

Working Principle

The Fire Extinguisher Robot detects fire through the flame and smoke sensors. When a fire is detected, the Arduino processes the sensor data and directs the robot towards the fire. Once near the fire source, it activates the water pump to extinguish the fire. The IoT module enables real-time monitoring and remote control capabilities, allowing operators to monitor fire situations from a distance and take control if needed.

Circuit Diagram

Here is how to connect the components:

• Connect the Flame Sensor to digital pin D2 on Arduino.
• Connect the Smoke Sensor to analog pin A0.
• Connect the Relay Module to digital pin D7 to control the water pump.
• Connect the Motor Driver to digital pins for movement control (e.g., D3, D4, D5, and D6).
• Connect the ESP8266 Wi-Fi Module for IoT communication (TX to D8, RX to D9 with level shifter if needed).

Arduino Code

        // IoT-Based Fire Extinguisher Robot
        #include
        const int flameSensorPin = 2;    // Flame sensor pin
        const int smokeSensorPin = A0;   // Smoke sensor pin
        const int relayPin = 7;          // Relay pin to control pump
        const int motorPin1 = 3;         // Motor pins for movement
        const int motorPin2 = 4;
        const int motorPin3 = 5;
        const int motorPin4 = 6;

        // WiFi credentials
        const char* ssid = "your_SSID";
        const char* password = "your_PASSWORD";

        void setup() {
            Serial.begin(9600);
            pinMode(flameSensorPin, INPUT);
            pinMode(smokeSensorPin, INPUT);
            pinMode(relayPin, OUTPUT);
            pinMode(motorPin1, OUTPUT);
            pinMode(motorPin2, OUTPUT);
            pinMode(motorPin3, OUTPUT);
            pinMode(motorPin4, OUTPUT);
            digitalWrite(relayPin, HIGH);  // Pump off initially
            WiFi.begin(ssid, password);

            // Connect to WiFi
            while (WiFi.status() != WL_CONNECTED) {
                delay(1000);
                Serial.print(".");
            }
            Serial.println("Connected to WiFi");
        }

        void loop() {
            int flameDetected = digitalRead(flameSensorPin);
            int smokeLevel = analogRead(smokeSensorPin);

            if (flameDetected == LOW || smokeLevel > 300) {  // Fire detected
                moveTowardsFire();
                digitalWrite(relayPin, LOW);   // Turn on pump
                Serial.println("Extinguishing fire");
            } else {
                stopMoving();
                digitalWrite(relayPin, HIGH);  // Turn off pump
                Serial.println("No fire detected");
            }
            delay(2000);
        }

        void moveTowardsFire() {
            digitalWrite(motorPin1, HIGH);
            digitalWrite(motorPin2, LOW);
            digitalWrite(motorPin3, HIGH);
            digitalWrite(motorPin4, LOW);
        }

        void stopMoving() {
            digitalWrite(motorPin1, LOW);
            digitalWrite(motorPin2, LOW);
            digitalWrite(motorPin3, LOW);
            digitalWrite(motorPin4, LOW);
        }


IoT Integration

Using the ESP8266 Wi-Fi module, this robot can be monitored and controlled remotely. By sending data to a cloud platform like ThingSpeak or Firebase, users can track the status of the fire detection in real time and take manual control if necessary.

System Workflow

The system works in the following steps:

1. The flame and smoke sensors monitor the surroundings continuously.
2. When fire or smoke is detected, the Arduino activates the robot to move towards the fire source.
3. Once near the fire, the robot activates the water pump to spray water on the fire.
4. The IoT module transmits the data to a remote server, enabling real-time monitoring and control.

Applications of Fire Extinguisher Robot

• Automated fire detection and control in industries, warehouses, and laboratories.
• Remote fire control in hazardous areas.
• Early fire detection in residential and commercial spaces.

Conclusion

This IoT-based Fire Extinguisher Robot is a practical solution for early fire detection and prevention. With real-time monitoring and autonomous control, it provides a quick response to fire hazards and can be a life-saving system in critical applications.
